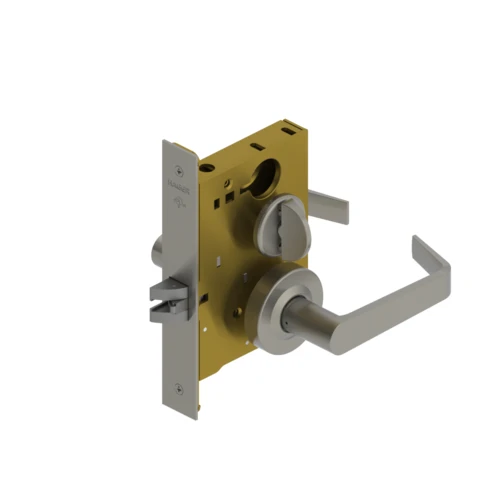

Hager 026844 3896 SECT 26D.WTN.RCS – S Privacy W/ Indicator (F22)

Original price was: $270.24.Current price is: $99.99.

SKU: ZGTOY 026844 Category: Door Closers and Accessories Tag: Hager

Enjoy top quality items for less
Streamlined service, designed for your convenience.
7-Day Returns, 100% Quality
Shop the Best Quality Online

3896 SECT 26D.WTN.RCS
SPECS :

Applications:

Heavy Duty Commercial
Industrial
Institutional

Backsets: 2-3/4″ (70mm)

Certifications:

ADA Compliant ANSI A117.1 Accessibility Code
UL/cUL Listed for all functions up to 3 hours “A” label single doors
UL10C Positive Pressure Rated
BHMA Certified ANSI A156.13, Series 1000, Grade 1

CTC Length: 3-5/8″ (92mm)

Exposed Trim:

Cast Zinc -Standard
Cast Stainless Steel – Optional for Withnell (WTS) and William (WLS) only

Functions: Privacy w/ Indicator (F22)

Latchbolt Type: 3/4″ (19 mm) throw with anti-friction tongue, all stainless steel

Lever Options: Archer, August, Charles, Johnston, Joshua, Louis, Warren, William and Withnell

Notes:

Exterior indicator housing displays “Occupied” or “Vacant”
Emergency release on exterior side via supplied key
No exposed mounting screws
Concealed thru-bolts
Body is easily field reversible (shipped LHR by default)
Self adjusting case for beveled doors

Options:

Tactile Warning
Lead Lining
Split Finish
Factory Handing Available (if specified)

Strike Strikes:

1-1/4″ x 4-7/8″ (32 mm x 124 mm) ASA strike
Optional strikes available

Warranty	Lifetime
Door Thickness	1-3/4" – 2" (45 mm – 51 mm)Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep
Rose Diameter	2-7/16" (62mm)
