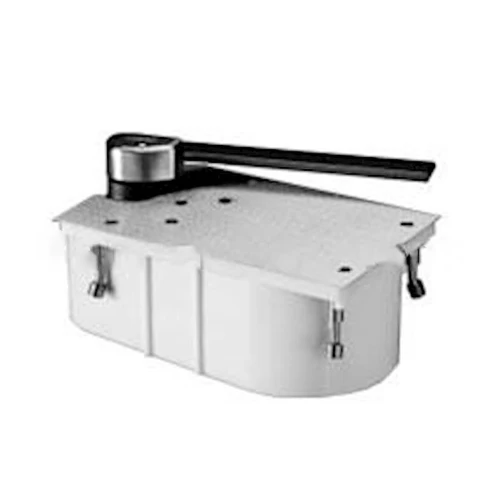

Rixson PH27S-RH-105-612 PH27 Series Physically Handicapped Floor Closer, Satin Bronze

3/4″ Offset Hung, Physically Handicapped, for Doors up to 450 lbs., Single Acting, Selective Hold Open, 105 Degrees, Right Hand, Includes 180 Top Pivot, 612 Satin Bronze Finish
Floor closers provide the best mechanical means to support and control a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability. Physically Handicapped ““ Prefix PH To comply with ICC/ANSI A117.1 established by the Americans with Disabilities Act. PH prefix indicates 5 pounds of opening force based at 30 from centerline of pivot. PH closers may not be used on labeled fire doors or exterior doors. Rixson accepts no responsibility for PH closers and door latching. Also be advised that ADA guidelines DO NOT apply to fire rated openings or exterior doors. Physically Handicapped models to meet ICC/ANSI A117.1 low opening force requirements. For exterior or interior doors Weight up to 450 lbs and door width up to 4’0. Standard top pivot #180 included and M19 intermediate pivot is required (order separately). Built-in Positive dead stop prevents door from swinging beyond the desired opening degree. Separate and independent valves for closing speed latch speed and backcheck. Cycolac rust-proof cement case. Vertical door adjustment. Doors 60 to 90 in height should use one intermediate pivot. Furnished with wood and machine screws. The Dark Oxidized Satin Bronze equivalent (613E) finish provides the richness and warmth of the 613 “living” finish but maintains its original color and appearance and will not fade or wear over time.
